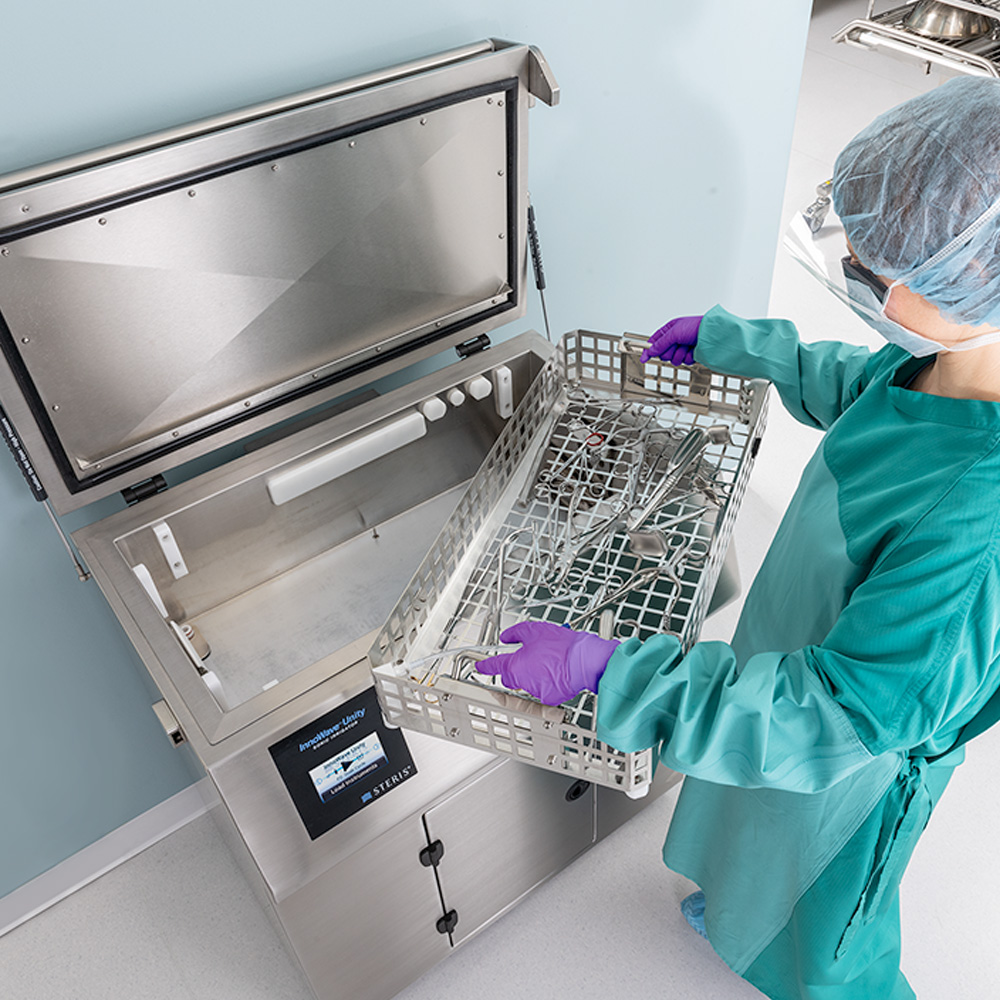

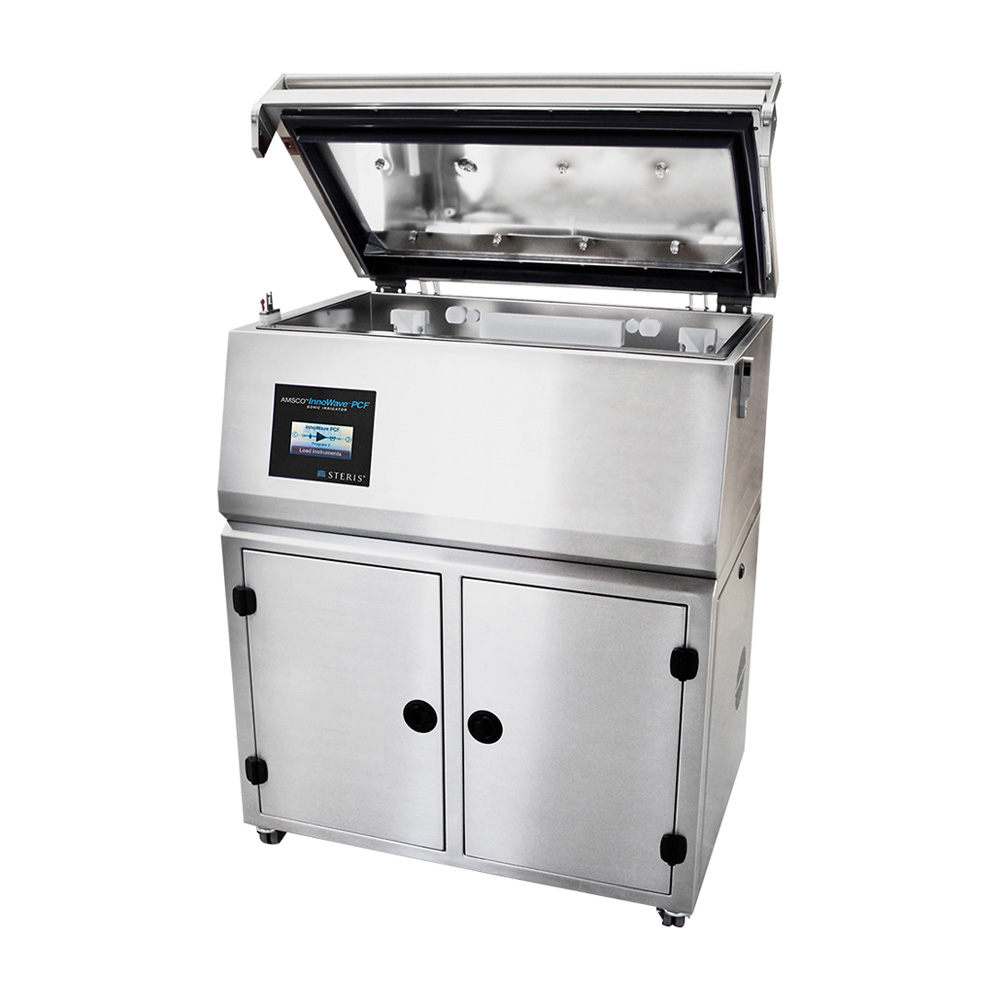

The STERIS InnoWave PCF is an ultrasonic washer-disinfector equipped with a dedicated mobile base with a cabinet for chemical agents, complete with agent dosing pumps. Thanks to the Power Flush high-pressure flow function, the device is able to thoroughly wash multiple channels of connected instruments simultaneously. The InnoWave PCF is equipped with a medium-level thermal disinfection option, which improves the safety of handling the processed instrumentation.

An exceptional advantage of the PCF model is the possibility of equipping it with optional baskets for processing robotic instruments, including da Vinci robot pin elements – Si and Xi models.

KEY FEATURES OF INNOWAVE PCF

• The wash bay housing and cover are made of AISI 304 stainless steel.
• Chamber made of AISI 316 stainless steel
• Water level, temperature and lid open sensors
• Automatic lid closing and locking during the process
• Automatic filling and draining of the washer chamber
• Cleaning of up to 20 channels or 20 kg of non-channelised tools in a single cycle

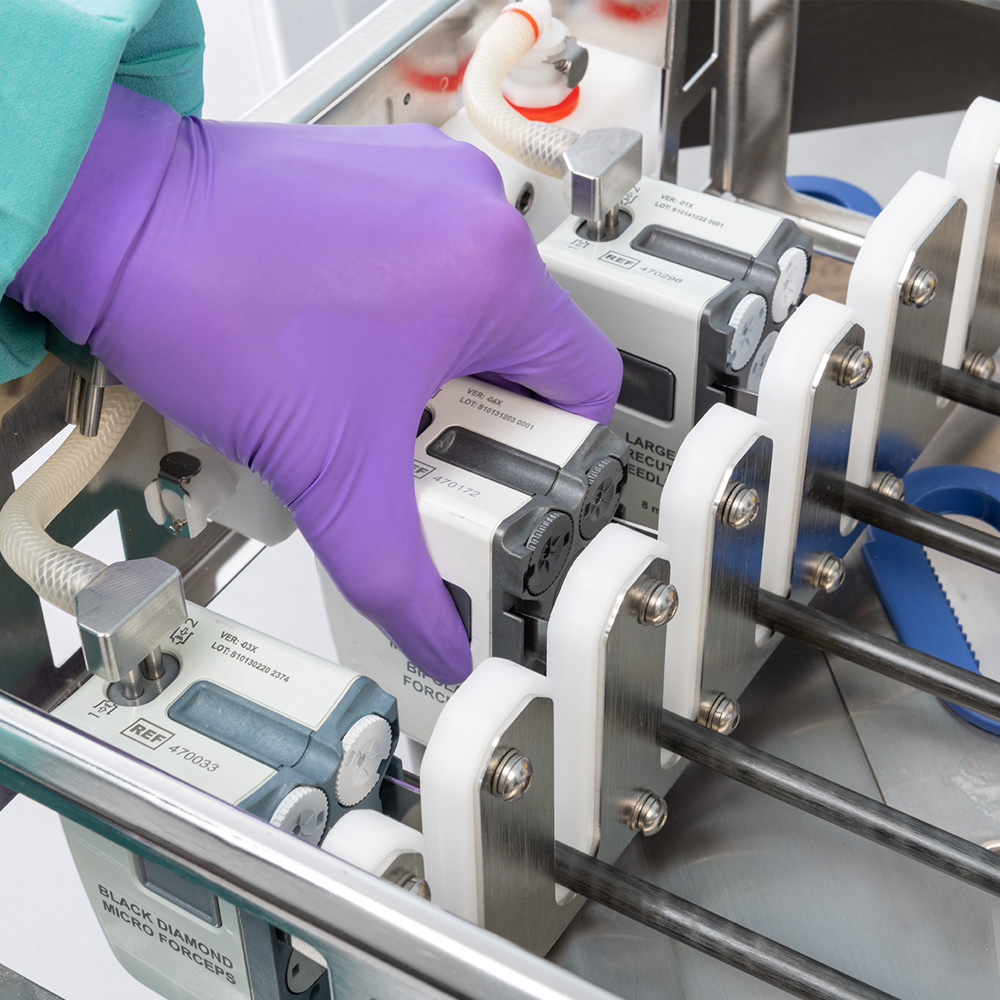

• Reprocessing of robotic instruments, including da Vinci robot wrists – Si and Xi models
• A 43-litre tank
• 20 piezoelectric transducers of 40W each
• Ultrasonic power of 48W per gallon
• 4.3” colour touchscreen display”
• 6 pre-programmed wash cycles with the option to customise the settings
• Dedicated chemical storage cabinet
• Sonic Irrigation Technology
• Ultrasound and high-pressure flushing
• Controlled flow of the solution within the channels
• Energy-efficient operation and optimal wash cycle times
• Cleaning tools with an additional upper water jet
• Final rinse at a higher temperature
• Reflectasonic technology – a specially designed chamber reflects ultrasonic waves, thereby improving cleaning performance
• High flow pressure for multiple channels simultaneously
